CUDA/nbody/Ubuntu 20.04.3 + CUDA 11.4 + Driver 470.129.06

by 스쳐가는인연 2022. 8. 25.

ML350 Gen10 System에서 CUDA sample code nbody Test 수행해보기

- 무지한 탓에 십 수회를 재설치하고 재셋팅해보았다는 ...





System Information:
ML350 Gen10 (Intel Xeon 51xx)

ML350 Gen10 (Intel Xeon 62xx)

1. Set SW level
System ROM 2.62 / IE 0.2.3.0.0 / SPS 4.1.4.601 / iLO 2.65


2. Set WP
a. Restore Set Default
b. Virtualization - Max Performance: Yes

3. Install Ubuntu 20.04.3
a. Set "nomodeset" during Install
- Edit<E> GRUB: add "nomodeset"
  linux /casper/vmlinuz nomodeset ---

b. Configure network (Set IP Address)

5. Install NVidia GPU Driver
a. blacklist nouveau
$ sudo vim /etc/default/grub
   GRUB_CMDLINE_LINUX_DEFAULT="nouveau.modeset=0"
$ sudo update-grub2



- Set root credential

$ sudo passwd root


$ sudo bash -c "echo blacklist nouveau > /etc/modprobe.d/blacklist-nvidia-nouveau.conf"
$ sudo bash -c "echo options nouveau modeset=0 >> /etc/modprobe.d/blacklist-nvidia-nouveau.conf"
$ sudo bash -c "echo install nouveau /bin/false >> /etc/modprobe.d/blacklist-nvidia-nouveau.conf"

$ cat /etc/modprobe.d/blacklist-nvidia-nouveau.conf
$ sudo update-initramfs -u

b. Setup prerequisite for install GPU Driver
$ sudo vim /etc/apt/sources.list
$ sudo sed -i 's/mirror.kakao.com/us.archive.ubuntu.com/g' /etc/apt/sources.list
$ sudo add-apt-repository "deb http://archive.ubuntu.com/ubuntu $(lsb_release -sc) main universe restricted multiverse"
$ sudo apt-get update

$ sudo apt install libglvnd-dev pkg-config g++ freeglut3-dev build-essential libx11-dev libxmu-dev libxi-dev libglu1-mesa libglu1-mesa-dev libfreeimage-dev



c. Install GUI

$ sudo apt-get install ubuntu-desktop

or $ sudo apt-get install --no-install-recommends ubuntu-desktop

$ sudo apt-get install indicator-appmenu-tools
$ sudo apt-get install indicator-session
$ sudo apt-get install indicator-datetime
$ sudo apt-get install indicator-applet-complete

$ sudo reboot

---------------------------------------------------------

cf. user mode commands
$ sudo systemctl isolate multi-user.target
$ sudo systemctl start graphical.target

$ sudo systemctl set-default multi-user
$ sudo systemctl set-default graphical

for nbody
$ cd /usr/local/cuda-11.4/samples/5_Simulations/nbody
$ sudo make

$ ls /usr/local/cuda-11.4/samples/bin/x86_64/linux/release/nbody

if libGLU.so not found:
$ sudo apt-get install libglu1-mesa libxi-dev libxmu-dev libglu1-mesa-dev
if cannot find -lglut:
$ sudo apt-get install freeglut3-dev
---------------------------------------------------------



d. Install GPU Driver

$ sudo systemctl isolate multi-user.target
$ wget https://us.download.nvidia.com/XFree86/Linux-x86_64/470.129.06/NVIDIA-Linux-x86_64-470.129.06.run
$ sudo chmod +x ./NVIDIA-Linux-x86_64-470.129.06.run
$ sudo sh ./NVIDIA-Linux-x86_64-470.129.06.run


5. Install CUDA 11.4
a. Install CUDA
$ wget https://developer.download.nvidia.com/compute/cuda/11.4.4/local_installers/cuda_11.4.4_470.82.01_linux.run
$ sudo sh cuda_11.4.4_470.82.01_linux.run

$ sudo vim ~/.bashrc
PATH=/usr/local/cuda-11.4/bin:/usr/local/cuda-11.4/samples:/usr/local/cuda-11.4/samples/bin/x86_64/linux/release:${PATH:+:${PATH}}
LD_LIBRARY_PATH=/usr/local/cuda-11.4/lib64:${LD_LIBRARY_PATH:+:${LD_LIBRARY_PATH}}

$ source ~/.bashrc

b. Install CUDA sample packages
$ cd /usr/local/cuda-11.4/samples
$ sudo make
$ sudo /usr/bin/nvidia-persistenced --verbose

$ sudo systemctl start graphical.target



6. nbody Test 수행 (GUI에서)

$ nbody -device=x -fp64

> CUDA Error가 발생 ... 왜 안되는 거지 ... ㅠ_ㅠ;;;



$ nbody -device=x -fp64 -benchmark

> 요건 동작



여려 자료를 참조한 끝에, (포기 직전에...) 아래 명령으로 구동에 성공 ... (제대로 한 것인지는 ... ...;;;;;)

# __NV_PRIME_RENDER_OFFLOAD=1 __NV_PRIME_RENDER_OFFLOAD_PROVIDER=NVIDIA-G0 __GLX_VENDOR_LIBRARY_NAME=nvidia nbody device=1

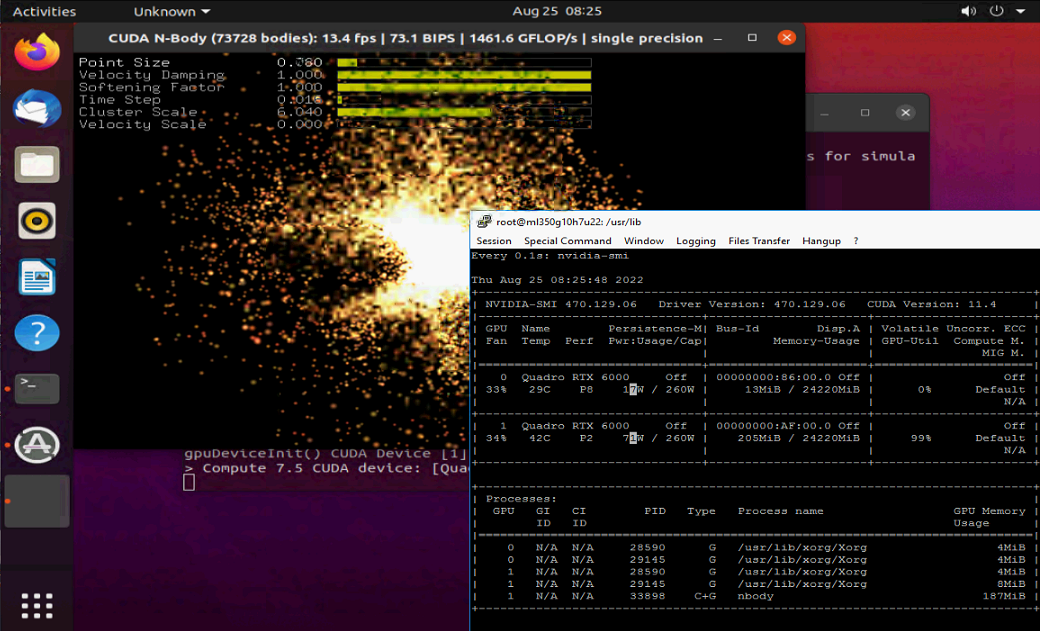

Ubuntu nbody 구동 성공



결론. 실행하기 무진장 어렵다 ... 오류도 많고... 관련 자료는 없고 ... (무지한 탓이겠지만 ...)

feat. 이런 오류와 끊임없이 사투를 벌이는 개발자분들 존경...
