d6500 fan location

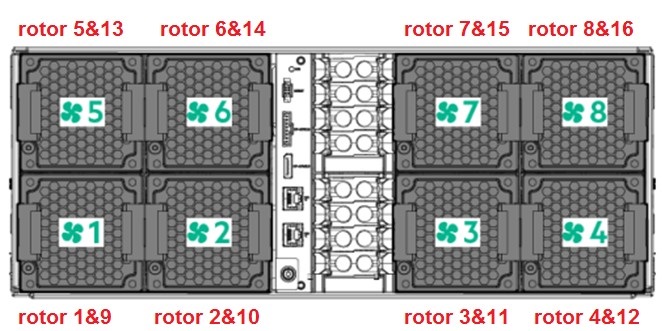

Apollo d6500/XL270d Gen9 FAN location

UG: 5
IML: 5, 13
UG: 6
IML: 6, 14
UG: 7
IML: 7, 15
UG: 8
IML: 8, 16
UG: 1
IML: 1, 9
UG: 2
IML: 2, 10
UG: 3
IML: 3, 11
UG: 4
IML: 4, 12



참고자료:

Advisory: HPE Apollo - ProLiant XL270d Gen9 Server May Exhibit Inconsistent and Out of Sequence Fan Numbering in the HP Integrated Lights-Out 4 (iLO 4) GUI

support.hpe.com/hpesc/public/docDisplay?docId=emr_na-c05291938
